Seeing Danger: How AI-Based Computer Vision Detects Firearms to Boost Security

• c++
• opencv

This research project explores how computer vision can help save lives by detecting firearms in real time. I built and trained a specialized convolutional neural network with the YOLO/Darknet framework to identify active shooter scenarios with high precision, then integrated the model into a C++ application with computer vision for live video analysis and alerting. The goal is a practical, software-driven approach to faster threat detection. 1

---

Technologies Used

• YOLO/Darknet: High-performance convolutional neural network framework.
• DarkMark: Annotation and training tool for fine-tuning models.
• FlTK: Used FLTM framework to write C++-based GUI I engineered for minimal memory consumption.
• C++: Core programming language for the system's backend.
• HTML: For explaining my goal for this startup/project.
• Twilio Voice API: Facilitates instant voice alerts for critical situations.

---

---

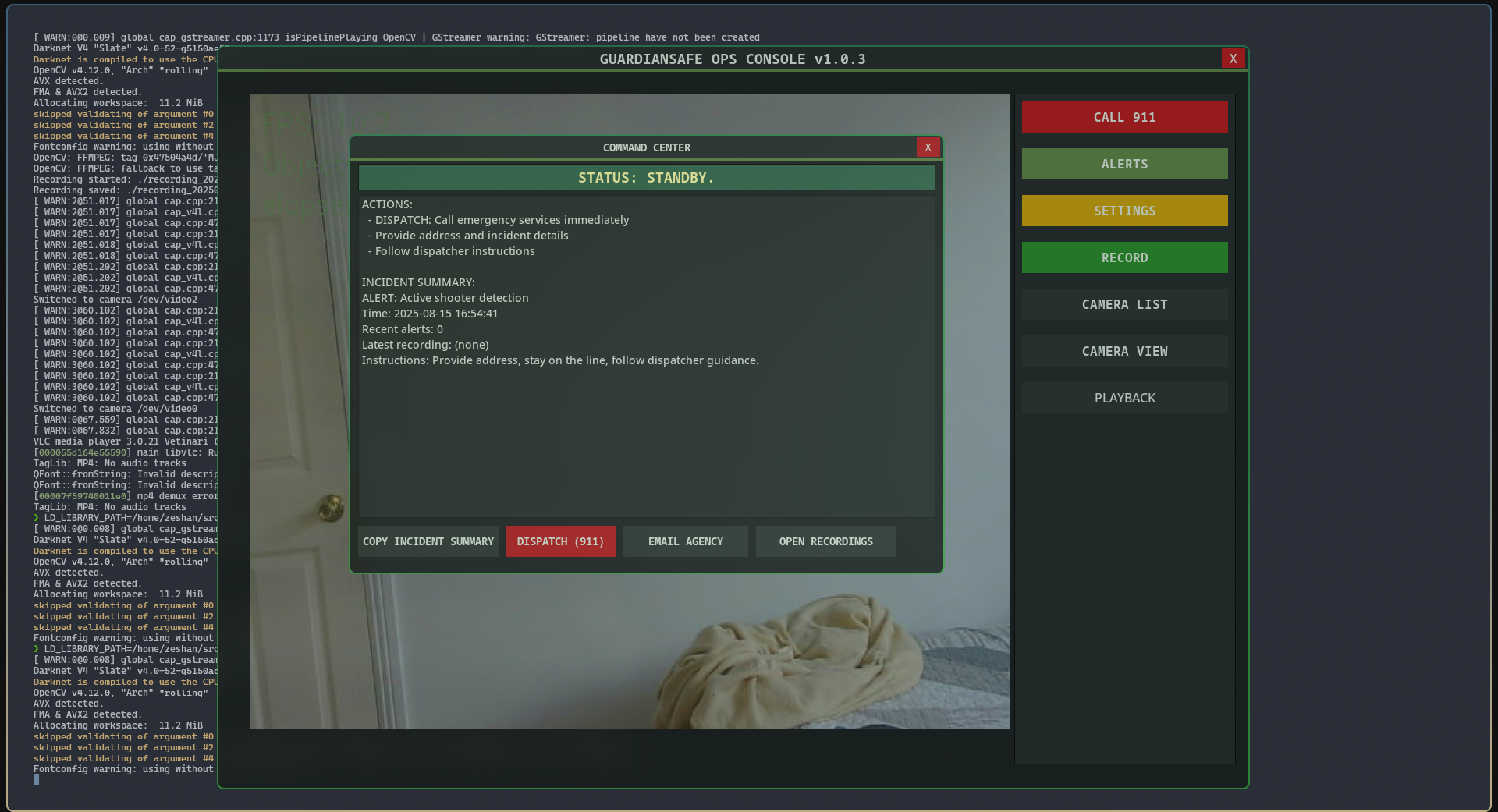

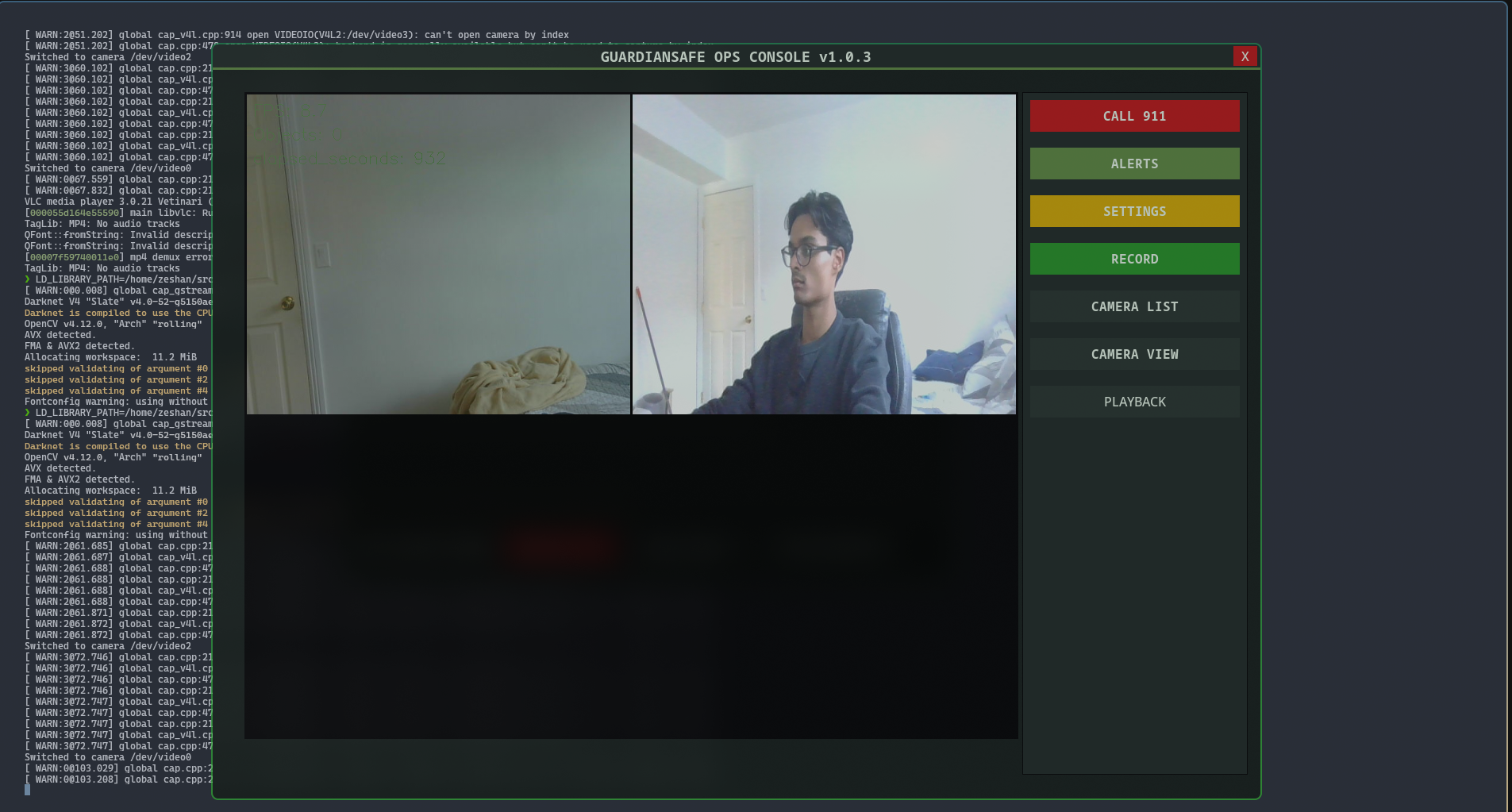

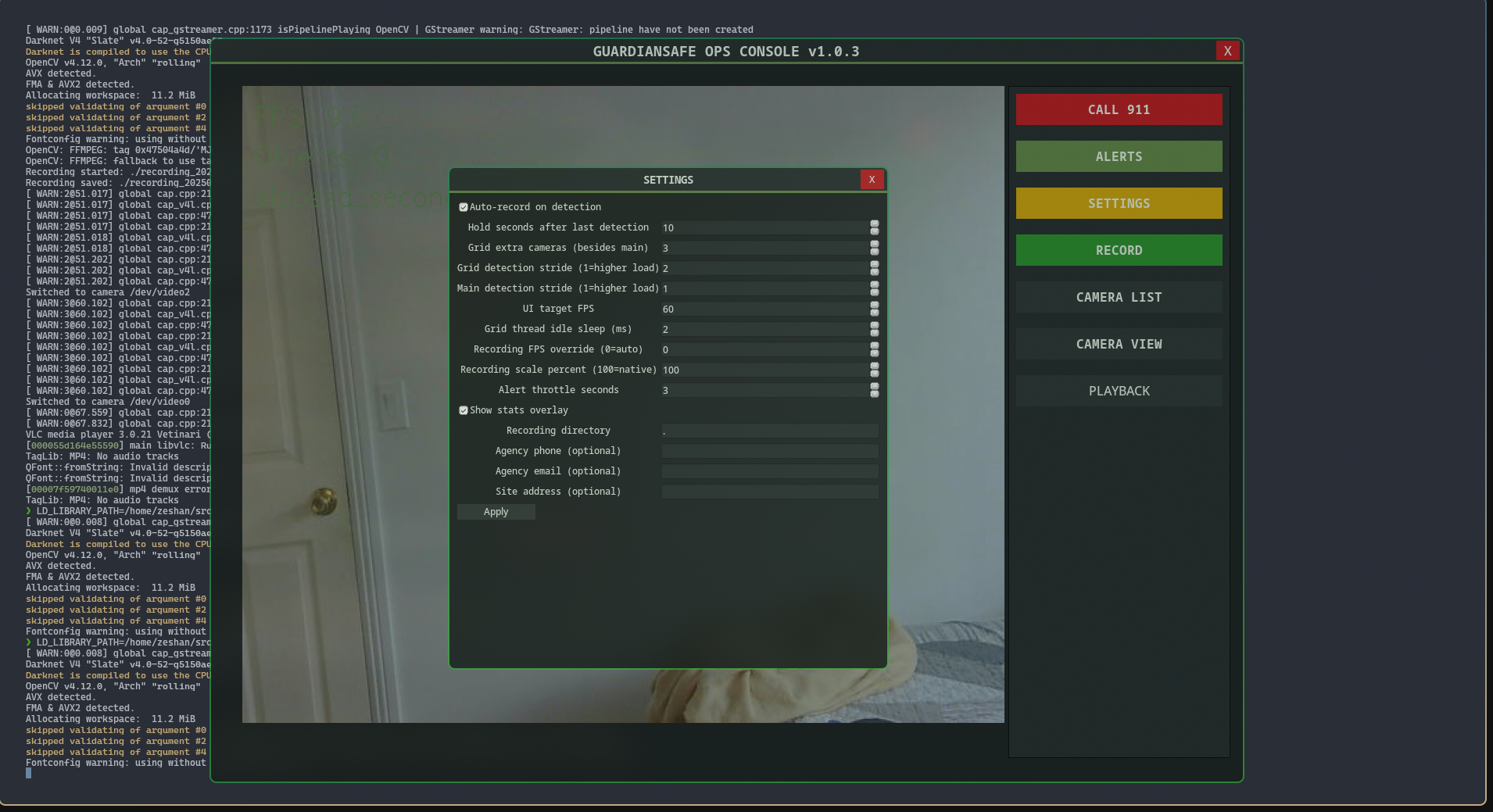

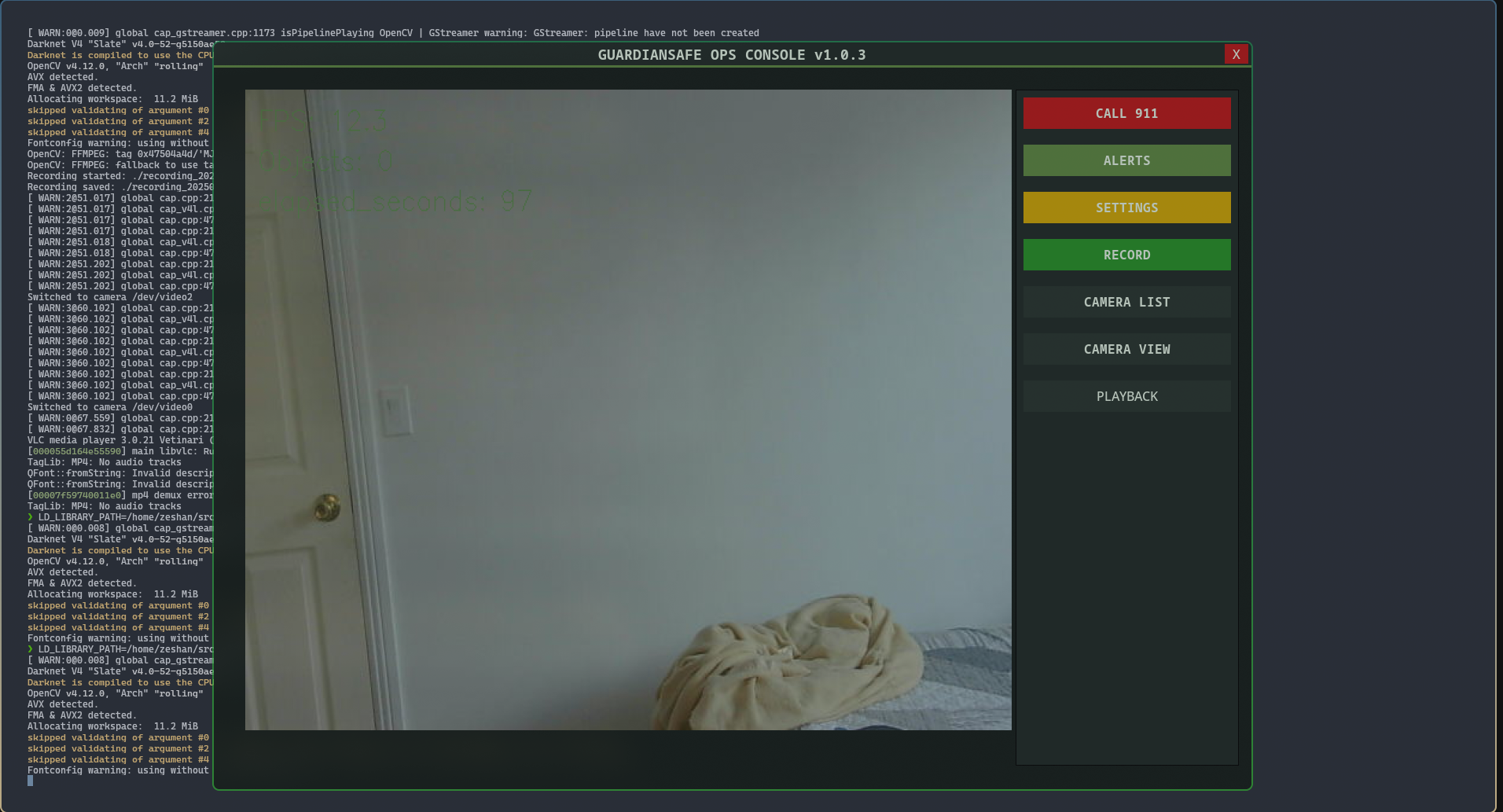

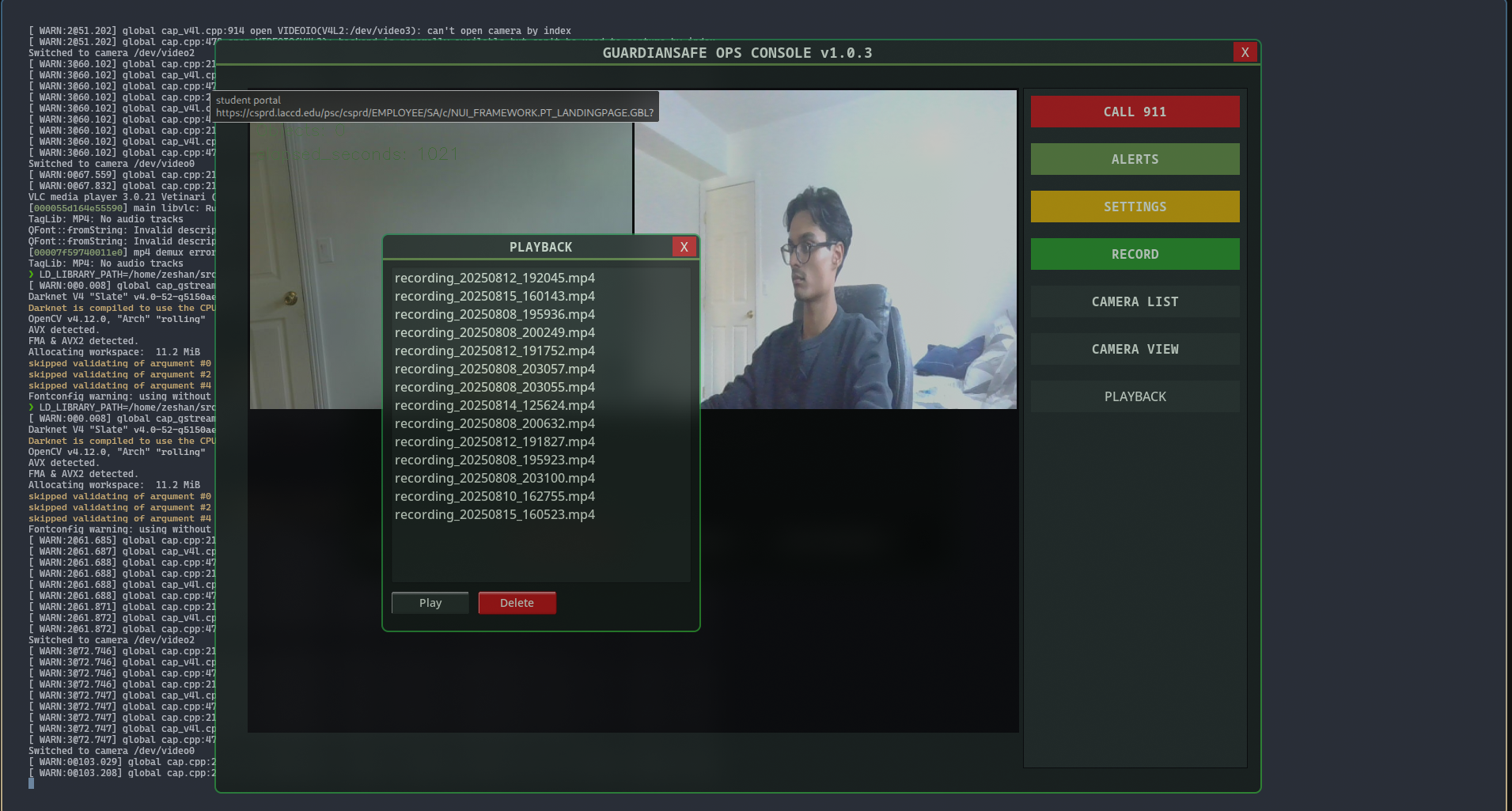

Application Interface Gallery

Explore the C++ GUI built with FLTK framework for real-time firearm detection and security monitoring

---

How it works:

1. Trained millions of Postive and Negative Datasets for Machine learning task
2. After Training, deploy the model weights into the C++ program
3. My C++ program consists of using the OpenCV framework. Using this framework helped me create a clear goal for object detection.

And yup, that works. But not without jumping through a few hoops:

• We can use this basic technology to save many lives. During active threat situations on school grounds, the attacker often comes from an entry point around the school, which can catch staff, teachers, and students off guard. Having a detection system can cut response time in half and save many lives. In situations like this, every second really matters.




    #include  opencv2/opencv.hpp  #include opencv2/highgui/highgui.hpp
  #include opencv2/imgproc/imgproc.hpp
  #include iostream
  #include opencv2/objdetect/objdetect.hpp

  using namespace std;
  using namespace cv;


  #include
  #include
  #include
  #include
  #include
  #include
  #include "darknet.hpp"
  #include "darknet_cfg_and_state.hpp"
  #include
  #include
  #include
  #include
  #include
  #include
  #include
  #include
  #include
  #include
  #include
  #include
  #include
  #include

  namespace {
  const Fl_Color kBg = fl_rgb_color(28, 28, 28);
  const Fl_Color kPanel = fl_rgb_color(36, 36, 36);
  const Fl_Color kBorder = fl_rgb_color(46, 204, 64);
  const Fl_Color kTitleBar = fl_rgb_color(45, 45, 45);
  const Fl_Color kBtnDark = fl_rgb_color(48, 48, 48);
  const Fl_Color kCall911 = fl_rgb_color(200, 40, 40);
  const Fl_Color kAlerts = fl_rgb_color(110, 130, 55);
  const Fl_Color kSettings = fl_rgb_color(210, 175, 35);
  const Fl_Color kRecord = fl_rgb_color(40, 170, 55);
  const Fl_Color kWhite = fl_rgb_color(255, 255, 255);

  void styleOpsButton(Fl_Button* btn, Fl_Color fill) {
      btn->box(FL_FLAT_BOX);
      btn->color(fill);
      btn->labelcolor(kWhite);
      btn->labelfont(FL_HELVETICA_BOLD);
      btn->labelsize(14);
      btn->clear_visible_focus();
  }
  } // namespace

  class PlaybackWindow : public Fl_Window {
  private:
      Fl_Box* titleBox;
      Fl_Button* closeButton;
      Fl_Browser* recordingsList;
      Fl_Button* playButton;
      Fl_Button* deleteButton;
      std::vector recordings;

      void loadRecordings() {
          recordings.clear();
          recordingsList->clear();

          for (const auto& entry : std::filesystem::directory_iterator(".")) {
              const auto ext = entry.path().extension().string();
              if (ext == ".mp4" || ext == ".avi") {
                  recordings.push_back(entry.path().string());
                  recordingsList->add(entry.path().filename().string().c_str());
              }
          }
      }

      static void playback_callback(Fl_Widget*, void* data) {
          auto* win = static_cast(data);
          const int selected = win->recordingsList->value();
          if (selected > 0 && selected <= static_cast(win->recordings.size())) {
              const std::string cmd = "xdg-open \"" + win->recordings[selected - 1] + "\"";
              system(cmd.c_str());
          }
      }

      static void delete_callback(Fl_Widget*, void* data) {
          auto* win = static_cast(data);
          const int selected = win->recordingsList->value();
          if (selected > 0 && selected <= static_cast(win->recordings.size())) {
              std::filesystem::remove(win->recordings[selected - 1]);
              win->loadRecordings();
          }
      }

  public:
      PlaybackWindow(int w, int h, const char* title)
          : Fl_Window(w, h, title) {
          color(kBg);
          box(FL_FLAT_BOX);

          titleBox = new Fl_Box(0, 0, w, 30, "PLAYBACK");
          titleBox->box(FL_FLAT_BOX);
          titleBox->color(kTitleBar);
          titleBox->labelcolor(kWhite);
          titleBox->labelfont(FL_HELVETICA_BOLD);
          titleBox->labelsize(14);

          Fl_Box* accent = new Fl_Box(0, 30, w, 3);
          accent->box(FL_FLAT_BOX);
          accent->color(kBorder);

          closeButton = new Fl_Button(w - 34, 3, 28, 24, "X");
          closeButton->box(FL_FLAT_BOX);
          closeButton->color(kCall911);
          closeButton->labelcolor(kWhite);
          closeButton->labelsize(14);
          closeButton->callback([](Fl_Widget*, void* data) {
              static_cast(data)->hide();
          }, this);

          recordingsList = new Fl_Browser(10, 44, w - 20, h - 100);
          recordingsList->type(FL_HOLD_BROWSER);
          recordingsList->textsize(14);
          recordingsList->color(kPanel);
          recordingsList->textcolor(kWhite);

          playButton = new Fl_Button(10, h - 46, 100, 32, "PLAY");
          styleOpsButton(playButton, fl_rgb_color(0, 140, 220));
          playButton->callback(playback_callback, this);

          deleteButton = new Fl_Button(120, h - 46, 100, 32, "DELETE");
          styleOpsButton(deleteButton, kCall911);
          deleteButton->callback(delete_callback, this);

          loadRecordings();
          end();
      }

      void refresh() { loadRecordings(); }
  };

  class CameraListWindow : public Fl_Window {
  private:
      Fl_Browser* cameraList;
      Fl_Button* selectButton;
      Fl_Button* closeButton;
      std::vector cameraIndexes;
      std::function onSelect;

      void refreshCameras() {
          cameraIndexes.clear();
          cameraList->clear();

          for (int i = 0; i < 10; ++i) {
              cv::VideoCapture test(i, cv::CAP_V4L2);
              if (test.isOpened()) {
                  cameraIndexes.push_back(i);
                  const std::string label = "/dev/video" + std::to_string(i);
                  cameraList->add(label.c_str());
                  test.release();
              }
          }
      }

      static void select_callback(Fl_Widget*, void* data) {
          auto* win = static_cast(data);
          const int selected = win->cameraList->value();
          if (selected > 0 && selected <= static_cast(win->cameraIndexes.size()) && win->onSelect) {
              win->onSelect(win->cameraIndexes[selected - 1]);
              win->hide();
          }
      }

  public:
      CameraListWindow(int w, int h, std::function selectCb)
          : Fl_Window(w, h, "Camera List"), onSelect(std::move(selectCb)) {
          color(kBg);

          Fl_Box* title = new Fl_Box(0, 0, w, 30, "CAMERA LIST");
          title->box(FL_FLAT_BOX);
          title->color(kTitleBar);
          title->labelcolor(kWhite);
          title->labelfont(FL_HELVETICA_BOLD);
          title->labelsize(14);

          Fl_Box* accent = new Fl_Box(0, 30, w, 3);
          accent->box(FL_FLAT_BOX);
          accent->color(kBorder);

          closeButton = new Fl_Button(w - 34, 3, 28, 24, "X");
          closeButton->box(FL_FLAT_BOX);
          closeButton->color(kCall911);
          closeButton->labelcolor(kWhite);
          closeButton->callback([](Fl_Widget*, void* data) {
              static_cast(data)->hide();
          }, this);

          cameraList = new Fl_Browser(10, 44, w - 20, h - 100);
          cameraList->type(FL_HOLD_BROWSER);
          cameraList->color(kPanel);
          cameraList->textcolor(kWhite);
          cameraList->textsize(14);

          selectButton = new Fl_Button(10, h - 46, 120, 32, "SELECT");
          styleOpsButton(selectButton, kRecord);
          selectButton->callback(select_callback, this);

          refreshCameras();
          end();
      }

      void refresh() { refreshCameras(); }
  };

  class WebcamWindow : public Fl_Window {
  private:
      Fl_Box* borderBox;
      Fl_Box* videoBox;
      cv::VideoCapture cap;
      cv::Mat frame, resizedFrame;
      Fl_RGB_Image* img;
      bool stopFlag;
      cv::VideoWriter videoWriter;
      bool isRecording;
      std::string currentVideoFile;
      PlaybackWindow* playbackPopup;
      CameraListWindow* cameraListPopup;
      int currentCameraIndex;
      std::mutex frameMutex;

      Darknet::NetworkPtr net;
      double estimated_fps;
      size_t frame_counter;
      size_t total_objects_found;
      std::chrono::high_resolution_clock::time_point timestamp_start;

      Fl_Box* topBar;
      Fl_Button* exitButton;
      Fl_Button* actionButton;
      Fl_Button* alertButton;
      Fl_Button* settingsButton;
      Fl_Button* recordButton;
      Fl_Button* CameralistButton;
      Fl_Button* viewButton;
      Fl_Button* playbackButton;

      const std::string MODEL_CFG = "/home/zeshan/src/darknet/src-examples/Shooter.cfg";
      const std::string MODEL_NAMES = "/home/zeshan/src/darknet/src-examples/Shooter.names";
      const std::string MODEL_WEIGHTS = "/home/zeshan/src/darknet/src-examples/Shooter_best.weights";

      std::string getTimestamp() {
          const auto now = std::chrono::system_clock::now();
          const auto in_time_t = std::chrono::system_clock::to_time_t(now);
          std::stringstream ss;
          ss << std::put_time(std::localtime(&in_time_t), "%Y%m%d_%H%M%S");
          return ss.str();
      }

      void startRecording() {
          currentVideoFile = "recording_" + getTimestamp() + ".avi";
          const int fourcc = cv::VideoWriter::fourcc('M', 'J', 'P', 'G');
          double fps = estimated_fps > 1.0 ? estimated_fps : 20.0;
          const cv::Size frameSize(
              static_cast(cap.get(cv::CAP_PROP_FRAME_WIDTH)),
              static_cast(cap.get(cv::CAP_PROP_FRAME_HEIGHT)));

          if (videoWriter.open(currentVideoFile, fourcc, fps, frameSize)) {
              isRecording = true;
              recordButton->label("STOP");
              recordButton->color(kCall911);
              recordButton->redraw();
              std::cout << "Recording started: ./" << currentVideoFile << std::endl;
          } else {
              std::cerr << "Failed to initialize video writer!" << std::endl;
          }
      }

      void stopRecording() {
          isRecording = false;
          videoWriter.release();
          recordButton->label("RECORD");
          recordButton->color(kRecord);
          recordButton->redraw();
          std::cout << "Recording saved: ./" << currentVideoFile << std::endl;
      }

      static void record_button_callback(Fl_Widget*, void* data) {
          auto* win = static_cast(data);
          if (!win->isRecording) {
              win->startRecording();
          } else {
              win->stopRecording();
          }
      }

      bool openCamera(int index) {
          if (cap.isOpened()) {
              cap.release();
          }
          if (!cap.open(index, cv::CAP_V4L2)) {
              std::cerr << "Error: Could not open webcam index " << index << std::endl;
              return false;
          }
          cap.set(cv::CAP_PROP_FRAME_WIDTH, 640);
          cap.set(cv::CAP_PROP_FRAME_HEIGHT, 480);
          cap.set(cv::CAP_PROP_FPS, 30);
          currentCameraIndex = index;
          std::cout << "Switched to camera /dev/video" << index << std::endl;
          return true;
      }

  public:
      WebcamWindow(int w, int h, const char* title)
          : Fl_Window(w, h, title),
            img(nullptr),
            stopFlag(false),
            isRecording(false),
            playbackPopup(nullptr),
            cameraListPopup(nullptr),
            currentCameraIndex(0),
            frame_counter(0),
            total_objects_found(0) {

          Darknet::VStr args = {
              MODEL_CFG,
              MODEL_NAMES,
              MODEL_WEIGHTS,
              "--thresh", "0.5"
          };
          Darknet::Parms parms = Darknet::parse_arguments(args);
          net = Darknet::load_neural_network(parms);

          if (!openCamera(0)) {
              throw std::runtime_error("webcam open failed");
          }
          estimated_fps = estimate_camera_fps(cap);
          timestamp_start = std::chrono::high_resolution_clock::now();

          Fl::scheme("gtk+");
          color(kBg);
          box(FL_FLAT_BOX);

          const int border = 4;
          const int topBarHeight = 36;
          const int sidebarW = 220;
          const int margin = 16;
          const int btnH = 48;
          const int btnGap = 14;

          borderBox = new Fl_Box(0, 0, w, h);
          borderBox->box(FL_BORDER_BOX);
          borderBox->color(kBg);
          borderBox->color2(kBorder);

          // Green outline using thin boxes
          Fl_Box* topEdge = new Fl_Box(0, 0, w, border);
          topEdge->box(FL_FLAT_BOX);
          topEdge->color(kBorder);
          Fl_Box* bottomEdge = new Fl_Box(0, h - border, w, border);
          bottomEdge->box(FL_FLAT_BOX);
          bottomEdge->color(kBorder);
          Fl_Box* leftEdge = new Fl_Box(0, 0, border, h);
          leftEdge->box(FL_FLAT_BOX);
          leftEdge->color(kBorder);
          Fl_Box* rightEdge = new Fl_Box(w - border, 0, border, h);
          rightEdge->box(FL_FLAT_BOX);
          rightEdge->color(kBorder);

          topBar = new Fl_Box(border, border, w - 2 * border, topBarHeight, "GUARDIANSAFE OPS CONSOLE v1.0.3");
          topBar->box(FL_FLAT_BOX);
          topBar->color(kTitleBar);
          topBar->labelcolor(kWhite);
          topBar->labelfont(FL_HELVETICA_BOLD);
          topBar->labelsize(16);
          topBar->align(FL_ALIGN_CENTER | FL_ALIGN_INSIDE);

          Fl_Box* accentLine = new Fl_Box(border, border + topBarHeight, w - 2 * border, 3);
          accentLine->box(FL_FLAT_BOX);
          accentLine->color(kBorder);

          exitButton = new Fl_Button(w - border - 34, border + 5, 28, 26, "X");
          exitButton->box(FL_FLAT_BOX);
          exitButton->color(kCall911);
          exitButton->labelcolor(kWhite);
          exitButton->labelfont(FL_HELVETICA_BOLD);
          exitButton->labelsize(14);
          exitButton->callback([](Fl_Widget*, void* data) {
              static_cast(data)->hide();
          }, this);

          const int contentTop = border + topBarHeight + 3 + margin;
          const int contentH = h - contentTop - border - margin;
          const int videoW = w - 2 * border - sidebarW - 3 * margin;
          const int sidebarX = border + margin + videoW + margin;

          videoBox = new Fl_Box(border + margin, contentTop, videoW, contentH);
          videoBox->box(FL_FLAT_BOX);
          videoBox->color(FL_BLACK);
          resizedFrame = cv::Mat(videoBox->h(), videoBox->w(), CV_8UC3);

          int by = contentTop;
          const int bw = sidebarW;

          actionButton = new Fl_Button(sidebarX, by, bw, btnH, "CALL 911");
          styleOpsButton(actionButton, kCall911);
          actionButton->callback(button_callback, this);
          by += btnH + btnGap;

          alertButton = new Fl_Button(sidebarX, by, bw, btnH, "ALERTS");
          styleOpsButton(alertButton, kAlerts);
          alertButton->callback([](Fl_Widget*, void*) {
              std::cout << "Alerts panel opened" << std::endl;
          });
          by += btnH + btnGap;

          settingsButton = new Fl_Button(sidebarX, by, bw, btnH, "SETTINGS");
          styleOpsButton(settingsButton, kSettings);
          settingsButton->callback([](Fl_Widget*, void*) {
              std::cout << "Settings opened" << std::endl;
          });
          by += btnH + btnGap;

          recordButton = new Fl_Button(sidebarX, by, bw, btnH, "RECORD");
          styleOpsButton(recordButton, kRecord);
          recordButton->callback(record_button_callback, this);
          by += btnH + btnGap;

          CameralistButton = new Fl_Button(sidebarX, by, bw, btnH, "CAMERA LIST");
          styleOpsButton(CameralistButton, kBtnDark);
          CameralistButton->callback(camera_list_callback, this);
          by += btnH + btnGap;

          viewButton = new Fl_Button(sidebarX, by, bw, btnH, "CAMERA VIEW");
          styleOpsButton(viewButton, kBtnDark);
          viewButton->callback([](Fl_Widget*, void* data) {
              auto* win = static_cast(data);
              std::cout << "Camera view: /dev/video" << win->currentCameraIndex << std::endl;
          }, this);
          by += btnH + btnGap;

          playbackButton = new Fl_Button(sidebarX, by, bw, btnH, "PLAYBACK");
          styleOpsButton(playbackButton, kBtnDark);
          playbackButton->callback(playback_button_callback, this);

          end();
      }

      double estimate_camera_fps(cv::VideoCapture& capture) {
          std::cout << "Estimating FPS..." << std::endl;
          cv::Mat mat;
          for (int i = 0; i < 5; i++) {
              capture >> mat;
          }

          size_t counted = 0;
          const auto ts1 = std::chrono::high_resolution_clock::now();
          for (int i = 0; capture.isOpened() && i < 5; i++) {
              capture >> mat;
              if (!mat.empty()) {
                  counted++;
              }
          }
          const auto ts2 = std::chrono::high_resolution_clock::now();
          const double ns = std::chrono::duration_cast(ts2 - ts1).count();
          return static_cast(counted) / ns * 1000000000.0;
      }

      void drawAppleStyleText(cv::Mat& imgFrame, const std::string& text, cv::Point position, double fontScale, int thickness) {
          int baseline = 0;
          cv::Size textSize = cv::getTextSize(text, cv::FONT_HERSHEY_SIMPLEX, fontScale, thickness, &baseline);

          cv::Rect bgRect(
              position.x,
              position.y - textSize.height,
              textSize.width + 8,
              textSize.height + baseline + 6);

          bgRect &= cv::Rect(0, 0, imgFrame.cols, imgFrame.rows);
          if (bgRect.area() <= 0) {
              return;
          }

          cv::Mat overlay = imgFrame.clone();
          cv::rectangle(overlay, bgRect, cv::Scalar(0, 0, 0), cv::FILLED);
          cv::addWeighted(overlay, 0.35, imgFrame, 0.65, 0, imgFrame);

          cv::putText(imgFrame, text, position + cv::Point(2, 2), cv::FONT_HERSHEY_SIMPLEX, fontScale, cv::Scalar(0, 0, 0), thickness);
          cv::putText(imgFrame, text, position, cv::FONT_HERSHEY_SIMPLEX, fontScale, cv::Scalar(80, 255, 120), thickness);
      }

      void updateFrame() {
          cv::Mat local;
          {
              std::lock_guard lock(frameMutex);
              if (!cap.read(local) || local.empty()) {
                  std::cerr << "Error: Failed to capture frame!" << std::endl;
                  return;
              }
          }

          const auto results = Darknet::predict_and_annotate(net, local);
          total_objects_found += results.size();

          const auto now = std::chrono::high_resolution_clock::now();
          const double elapsed_seconds = std::chrono::duration_cast(now - timestamp_start).count() / 1000000000.0;
          const double current_fps = frame_counter > 0 ? frame_counter / elapsed_seconds : 0.0;

          std::stringstream stats;
          stats << "FPS: " << std::fixed << std::setprecision(1) << current_fps << "\n"
                << "Objects: " << total_objects_found << "\n"
                << "Elapsed seconds: " << static_cast(elapsed_seconds);

          std::vector lines;
          std::string line;
          while (std::getline(stats, line, '\n')) {
              lines.push_back(line);
          }

          int y_offset = 30;
          for (const auto& text_line : lines) {
              drawAppleStyleText(local, text_line, cv::Point(10, y_offset), 0.7, 2);
              y_offset += 30;
          }

          if (isRecording && videoWriter.isOpened()) {
              videoWriter.write(local);
          }

          cv::cvtColor(local, local, cv::COLOR_BGR2RGB);
          cv::resize(local, resizedFrame, resizedFrame.size());

          if (img) {
              delete img;
          }
          img = new Fl_RGB_Image(resizedFrame.data, resizedFrame.cols, resizedFrame.rows, 3);
          videoBox->image(img);
          videoBox->redraw();
          frame_counter++;
      }

      static void captureLoop(void* userdata) {
          auto* win = static_cast(userdata);
          while (!win->stopFlag) {
              win->updateFrame();
              Fl::check();
              std::this_thread::sleep_for(std::chrono::milliseconds(1000 / 30));
          }
      }

      void startCapture() {
          std::thread(captureLoop, this).detach();
      }

      ~WebcamWindow() {
          stopFlag = true;
          if (isRecording) {
              stopRecording();
          }
          if (img) {
              delete img;
          }
          delete playbackPopup;
          delete cameraListPopup;
          cap.release();
          Darknet::free_neural_network(net);
      }

      static void button_callback(Fl_Widget*, void*) {
          std::cout << "CALL 911 pressed" << std::endl;
      }

      static void playback_button_callback(Fl_Widget*, void* data) {
          auto* win = static_cast(data);
          if (!win->playbackPopup) {
              win->playbackPopup = new PlaybackWindow(420, 520, "Playback");
          }
          win->playbackPopup->refresh();
          win->playbackPopup->show();
      }

      static void camera_list_callback(Fl_Widget*, void* data) {
          auto* win = static_cast(data);
          if (!win->cameraListPopup) {
              win->cameraListPopup = new CameraListWindow(360, 420, [win](int index) {
                  std::lock_guard lock(win->frameMutex);
                  win->openCamera(index);
                  win->estimated_fps = win->estimate_camera_fps(win->cap);
              });
          }
          win->cameraListPopup->refresh();
          win->cameraListPopup->show();
      }
  };

  int main() {
      WebcamWindow window(1320, 860, "GuardianSafe Ops Console");
      window.show();
      window.startCapture();
      return Fl::run();
  }



























  For now, lets build :D
